Carman Haas Laser provides a complete set of Busbar laser disassembly solutions. All optical paths are customized designs, including laser sources, optical scanning heads and software control parts. The laser source is shaped by the optical scanning head, and the beam waist diameter of the focused spot can be optimized to within 30um, ensuring that the focused spot reaches a higher energy density, achieving rapid vaporization of aluminum alloy materials, and thus achieving high-speed processing effects.
| Parameter | Value |
| Working Area | 160mmX160mm |
| Focus spot diameter | ＜30µm |
| Working wavelength | 1030nm-1090nm |
（1） High energy density and fast galvanometer scanning, achieve processing time of <2 seconds;
（2） Good processing depth consistency;
（3） Laser disassembly is a non-contact process, and the battery case is not subject to external force during the disassembly process. It can ensure that the battery case is not damaged or deformed;
（4）Laser disassembly has a short action time and can ensure that the temperature rise in the top cover area is kept below 60°C.

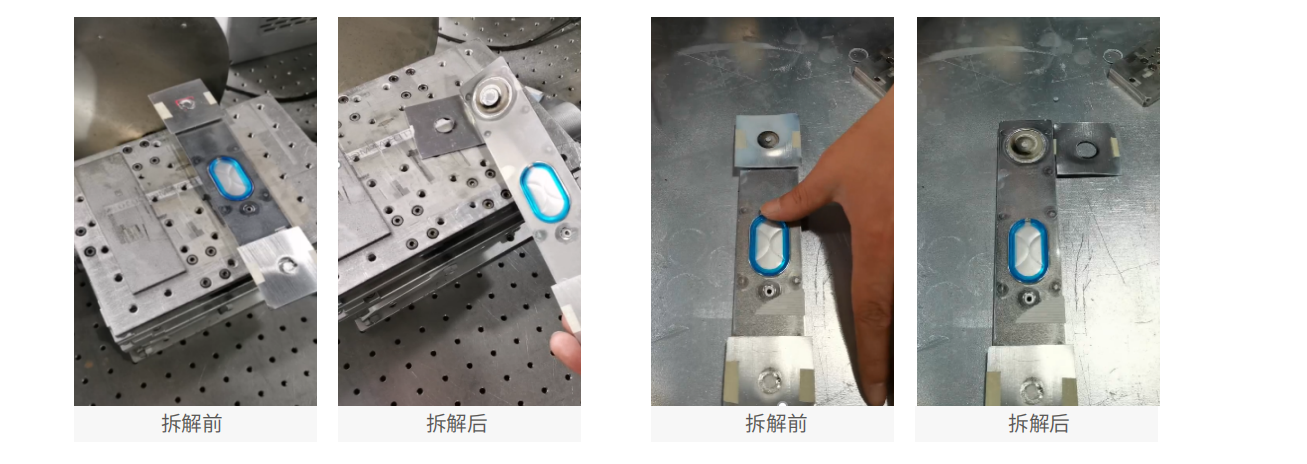

Disassembly and recycling of prismatic lithium battery modules
